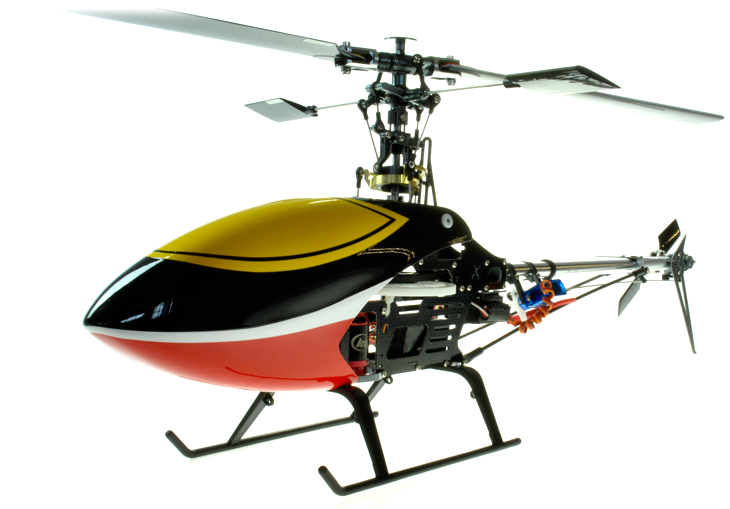

CopterX Black Angel Pro RC Helicopter - RTF Version
Black Angel is one of the most advance 450 size 3D helicopters on the market. With it’s innovative design and robust aluminium and carbon construction, Black Angel is able to offer performance rivals can only dream of. The Black Angel is a completely new helicopter designed from the ground up. A lot of unique features are brand new or only available for larger helicopters. Things like +/- 15 degree pitch range; carbon main and tail blade; carbon fly paddle; one piece carbon fiber main frame; CNC main rotor and tail drive assembly; oversized bearing and feathering shaft; pre painted fiber glass streamline canopy, etc. With it’s wide range of adjustability you will be able to take the hobby to the highest level.
This model is available in a KIT version or RTF Version
- +/- 15 extra wide pitch range
- Over sized feathering shaft, screws, blade grip bearing etc. for low maintenance
- 4mm feathering shaft with thrusted bearing for accurate high load 3D operation
- Hardened aluminum washout base & rudder slider is long lasting & light weight
- 240 reinforced swash plate for positive response
- One piece CCPM swash plate design for durability
- Simple head design for quick output and easy maintenance
- Fully ball raced to handle head speed of 3500rpm+ & tail speed of 13600rpm+
- Extra wide drive belt for trouble free and quick operation
- Direct tail drive system weight saving and quicker response
- Extra wide drive belt to ensure non slip and sensitive rudder control
- High strength nylon main gear for quite and smooth operation
- Precise high wear resistance aluminum alloy pulley set
- One piece carbon fiber main frame for strength and durability
- Light weight carbon bottom plate, ESC mount, battery mount & anti rotation bracket.
- High strength aluminum alloy tail boom look • Aluminum alloy rudder servo mount
- Light weight one piece composite landing skid
- Plastic Canopy mounts to isolate canopy vibration
- Light weight high strength glass fiber per painted canopy

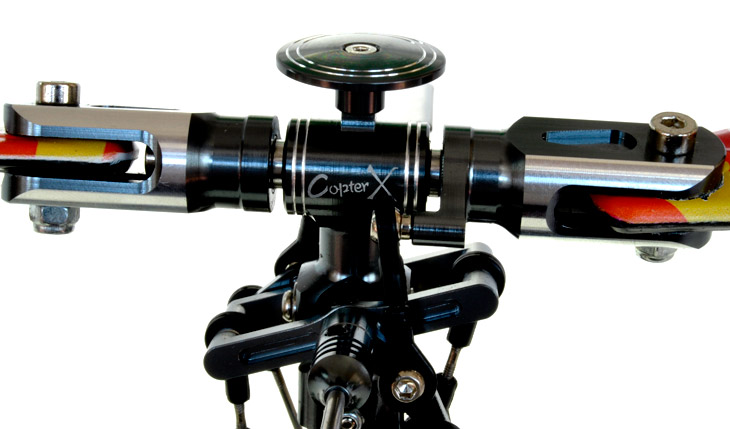

No need to ever spend money upgrading the Black Angel as all upgrades come as standard with full CNC aluminum or carbon throughout. All parts are ball raced & aluminum parts were finished with a beautiful anodized grey. The carbon blades are top of the line products & can really perform during heavy load conditions. A lot of parts on the rotor head are over sized or hardened. 4mm feathering shaft, hardened aluminum alloy washout, oversize main shaft lock collar, one piece swashplate, etc. All these allow high loading for extreme 3D maneuvers.
The tail drive system also features a light weight but rigid CNC & carbon construction including carbon tail blades. The extra wide long life drive belt ensures positive rudder control during 3D maneuvers and belt tensioners on both ends reduce the chance of skipping and derailing. A one piece carbon frame reduces the number of aluminum parts necessary for the frame resulting in a light weight and rigid construction. All mounts are aluminum including a special composite canopy mount to reduce vibration.

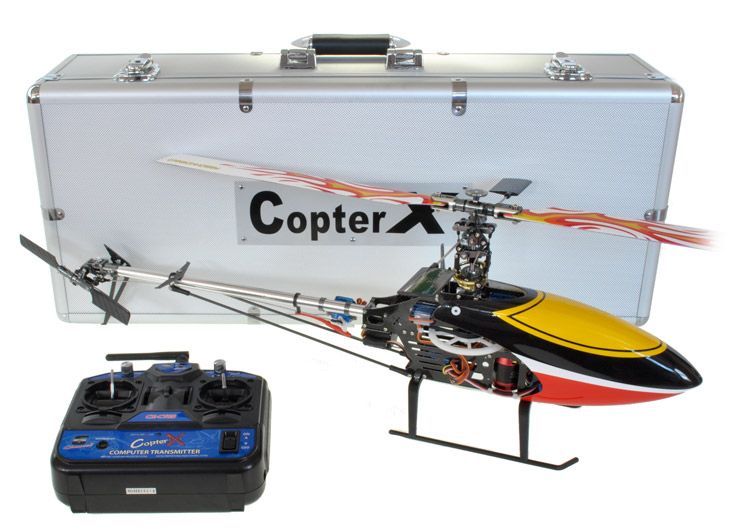

Please note the Black Angel is available in either KIT form or RTF. The RTF version will still require some setup but everything is included and it comes pre-built. The KIT version does not include any electronics and requires some assembly.
- CopterX CX450 Black Angel Kit x 1
- CopterX 3500Kv Brushless Motor x 1
- CopterX 50A ESC x 1
- CopterX 2.4G Transmitter & Receiver x 1
- CopterX 9g Servos x 4
- CopterX Gyro 240 x 1
- Full Size Aluminum Case x 1
- CopterX UK Balance Charger x 1
- Switching Adapter x 1
- CopterX Li-Polymer Battery 11.1V 15C 2200mAh x 1
- CNC & Carbon Construction
- Auto-Rotation System
- Rear Tail Servo Mount
- Collective Pitch System
- Tail Rotor Drive Belt System
- Main Drive Gear with Cooling Fan
- Professional Servo Control Lever Design
- Length: 653mm
- Height: 240mm
- Main Rotor: 714mm
- Tail Rotor: 157mm
- Motor Gear: 12T/13T
- Main Gear: 150T
- Autorotation Tail Drive Gear: 43T
- Tail Drive Gear: 10T
- Drive Gear Ratio: 1:12.5:4.3(12T) / 1:11.54:4.3(13T)
- Weight(without electric parts): 370g
- Weight(including electric parts): 760~800g
