The CopterX CX 450 V2 Superior Edition (eCCPM) represents the state of the art in micro helicopter technology by utilising the latest design techniques and highest quality aluminium and carbon materials. The aluminum parts are anodized in a fantastic looking blue color which really stand out against the high gloss carbon frame. This kit is for the flyers who want uncompromised performance and quality to take the hobby to the highest level.

FEATURE SUMMARY

• New CNC carbon frame improves the rigidity and is perfect for 3D flying.
• CCPM collective pitch version with new aluminum parts for prompt, precision action.
• SSG battery mounting plate connects to main frame. It makes the center of gravity closer to the rotor blades reducing the correction needed after 3D maneuvers.
• Rigid CNC aluminum rotor head for precise and smooth movements.
• Uses Ball and Hiller two system mixing control.
• CCPM control can simultaneously control 3 servos for AILE, EVLE & PIT actions. This CCPM control system is great for 3D flying control and extending the life cycle of servos.
• New streamlined carbon tail rotor blades makes the gyro more efficient.

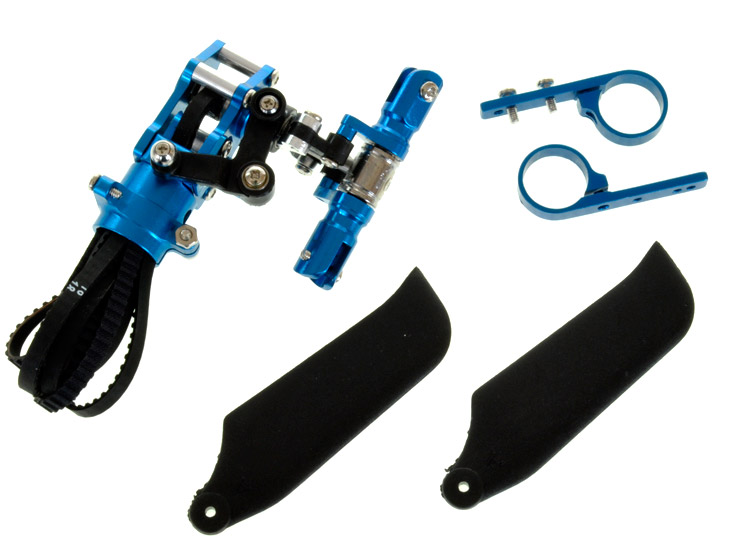

• New tail rotor control set, CNC control piece and movable ball link for smooth pitch travel.
• Adjustable flybar weight - When normal flying you can add the weights to the flybar paddles for stable flight. When aerobatic flying you can remove the weights for added flexibility.
• CNC Metal tail unit and tail holder use high rigid aluminum.
• New gear ratio(4.24:1), suitable for the higher KV motor.
• Uses aluminum alloy drive pulley and tail drive pulley for high rigidity and wear resistance. It is efficient to reduce the rotation loss and makes it smoother.
• Stainless steel anti-oxidization linkage balls are used throughout and are wear resistant
• Tail rotor hub is made of stainless steel and is very rigid.
• Great stable and sensitive mixing lever design. Gives high stability and precision for 3D flight.
• CX 450SE special adjustable pitch system, hold rotation system and tail rotor drive belt system makes this a fantastic and original helicopter.

The CX450 SE is one of the top spec helicopters on the market. No need to ever spend money on upgrades as the SE has them all prefitted. To buy a standard helicopter and then upgrade it to this level would cost many times more. With full CNC aluminum or carbon throughout the CX450SE is a tough and higly capable model for extreme flying. All parts are ball raced & a lot of parts on the rotor head are over sized or hardened. Not only are the materials high spec but so is the technology making this an amazing package.

Over sized feathering shaft with thrust bearing blade grip.

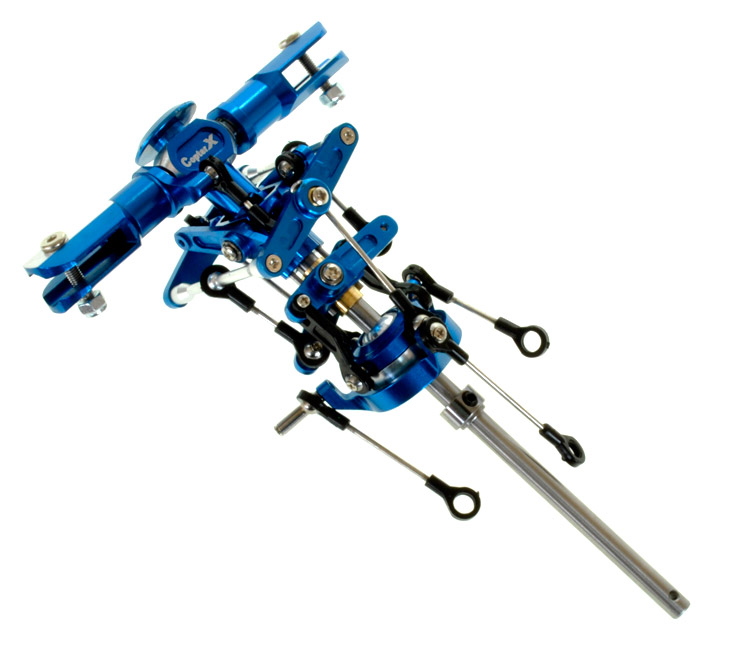

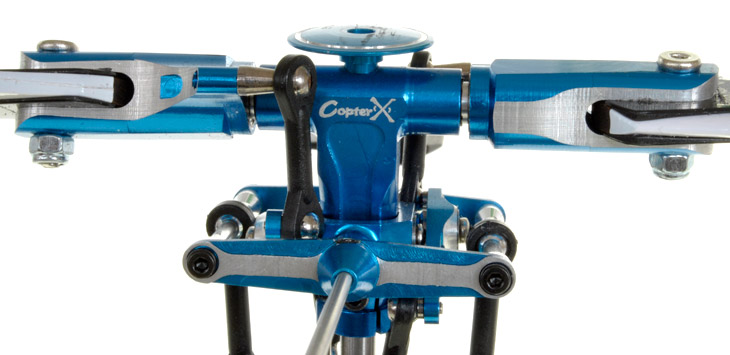

CNC aluminum alloy rotor head with anti rotation bracket & high precision swashplate.

CCPM, anti rotation, dual cooling fan, adjustable throughout etc., this helicopter has it all. The tail drive system also features a light weight but rigid CNC & carbon construction. The extra wide long life drive belt ensures positive rudder control during 3D maneuvers and belt tensioners on both ends reduce the chance of skipping and derailing. The carbon frame is light weight and rigid. All mounts are aluminum including a special composite canopy mount to reduce vibration.

Specifications: Length:650mm Height:230mm Main Rotor:700mm Tail Rotor:150mm Motor Gear:13T/11T Main Gear:150T Autorotation Tail Drive Gear:106T Tail Drive Gear:25T Drive Gear Ratio:1:11.5:4.24/1:13.6:4.24 Weight(without power system):354g Weight(including power system):690g

High balanced main drive gear with dual cooling fan design patent.

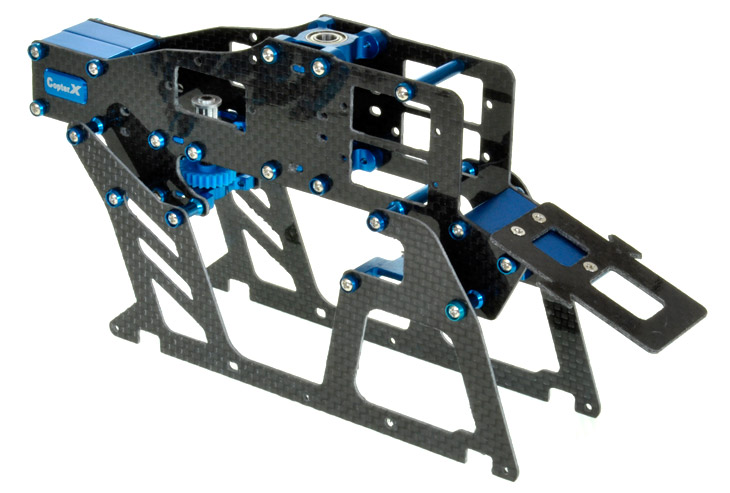

Higher strength carbon main frame & new longer battery mounting plate (c.g. adjustable).

Features Include: CNC & Carbon Construction Auto-Rotation System Rear Tail Servo Mount Collective Pitch System Tail Rotor Drive Belt System Main Drive Gear with Cooling Fan Professional Servo Control Lever Design
