Black Angel is one of the most advance 450 size 3D helicopters on the market. With it’s innovative design and robust aluminium and carbon construction, Black Angel is able to offer performance rivals can only dream of. The Black Angel is a completely new helicopter designed from the ground up. A lot of unique features are brand new or only available for larger helicopters. Things like +/- 15 degree patch range; carbon main and tail blade; carbon fly paddle; one piece carbon fiber main frame; CNC main rotor and tail drive assembly; oversized bearing and feathering shaft; pre painted fiber glass streamline canopy, etc. With it’s wide range of adjustability you will be able to take the hobby to the highest level.

FEATURE SUMMARY

• +/- 15 extra wide pitch range.
• Over sized feathering shaft, screws, blade grip bearing etc. for low maintenance.
• 4mm feathering shaft with thrusted bearing for accurate high load 3D operation.
• Hardened aluminum washout base & rudder slider is long lasting & light weight.
• 240 reinforced swash plate for positive response
• One piece CCPM swash plate design for durability
• Simple head design for quick output and easy maintenance
• Fully ball raced to handle head speed of 3500rpm+ & tail speed of 13600rpm+
• Extra wide drive belt for trouble free and quick operation
• Direct tail drive system weight saving and quicker response
• Extra wide drive belt to ensure non slip and sensitive rudder control
• High strength nylon main gear for quite and smooth operation
• Precise high wear resistance aluminum alloy pulley set
• One piece carbon fiber main frame for strength and durability
• Light weight carbon bottom plate, ESC mount, battery mount & anti rotation bracket.
• High strength aluminum alloy tail boom look
• Aluminum alloy rudder servo mount
• Light weight one piece composite landing skid
• Plastic Canopy mounts to isolate canopy vibration
• Light weight high strength glass fiber per painted canopy

No need to ever spend money upgrading the Black Angel as all upgrades come as standard with full CNC aluminum or carbon throughout. All parts are ball raced & aluminum parts were finished with a beautiful anodized grey. The carbon blades are top of the line products & can really perform during heavy load conditions. A lot of parts on the rotor head are over sized or hardened. 4mm feathering shaft, hardened aluminum alloy washout, oversize main shaft lock collar, one piece swashplate, etc. All these allow high loading for extreme 3D maneuvers.

Over sized feathering shaft with thrust bearing blade grip.

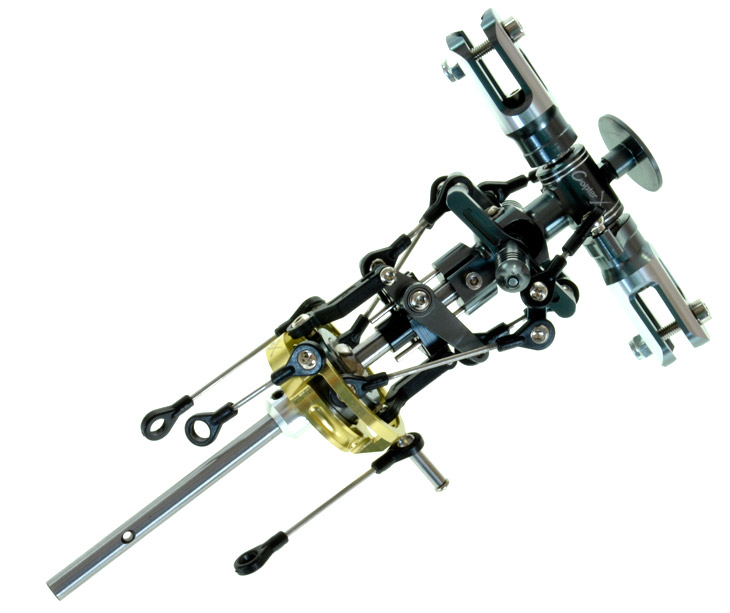

CNC machined aluminum alloy rotor head with one piece swashplate.

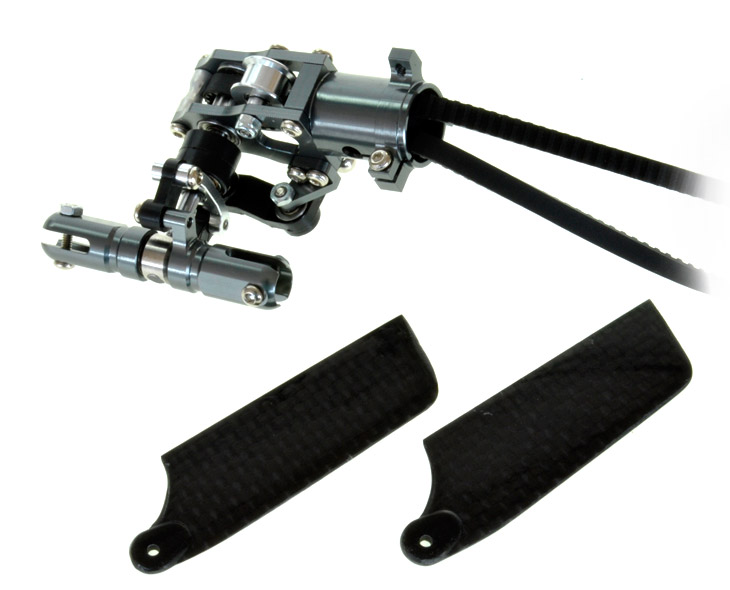

The tail drive system also features a light weight but rigid CNC & carbon construction including carbon tail blades. The extra wide long life drive belt ensures positive rudder control during 3D maneuvers and belt tensioners on both ends reduce the chance of skipping and derailing. A one piece carbon frame reduces the number of aluminum parts necessary for the frame resulting in a light weight and rigid construction. All mounts are aluminum including a special composite canopy mount to reduce vibration.

Specifications: Length: 653mm Height: 240mm Main Rotor: 714mm Tail Rotor: 157mm Motor Gear: 12T/13T Main Gear: 150T Autorotation Tail Drive Gear: 43T Tail Drive Gear: 10T Drive Gear Ratio: 1:12.5:4.3(12T) / 1:11.54:4.3(13T) Weight(without electric parts): 370g Weight(including electric parts): 760~800g

240 reinforced one piece swash plate with carbon fiber anti rotation bracket.

Carbon fiber fly paddles included as standard equipment.

Features Include: CNC & Carbon Construction Auto-Rotation System Rear Tail Servo Mount Collective Pitch System Tail Rotor Drive Belt System Main Drive Gear with Cooling Fan Professional Servo Control Lever Design
